| Weight | 400 lbs |
|---|
Form Metal Pickets In Your Own Shop

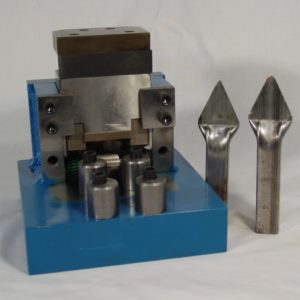

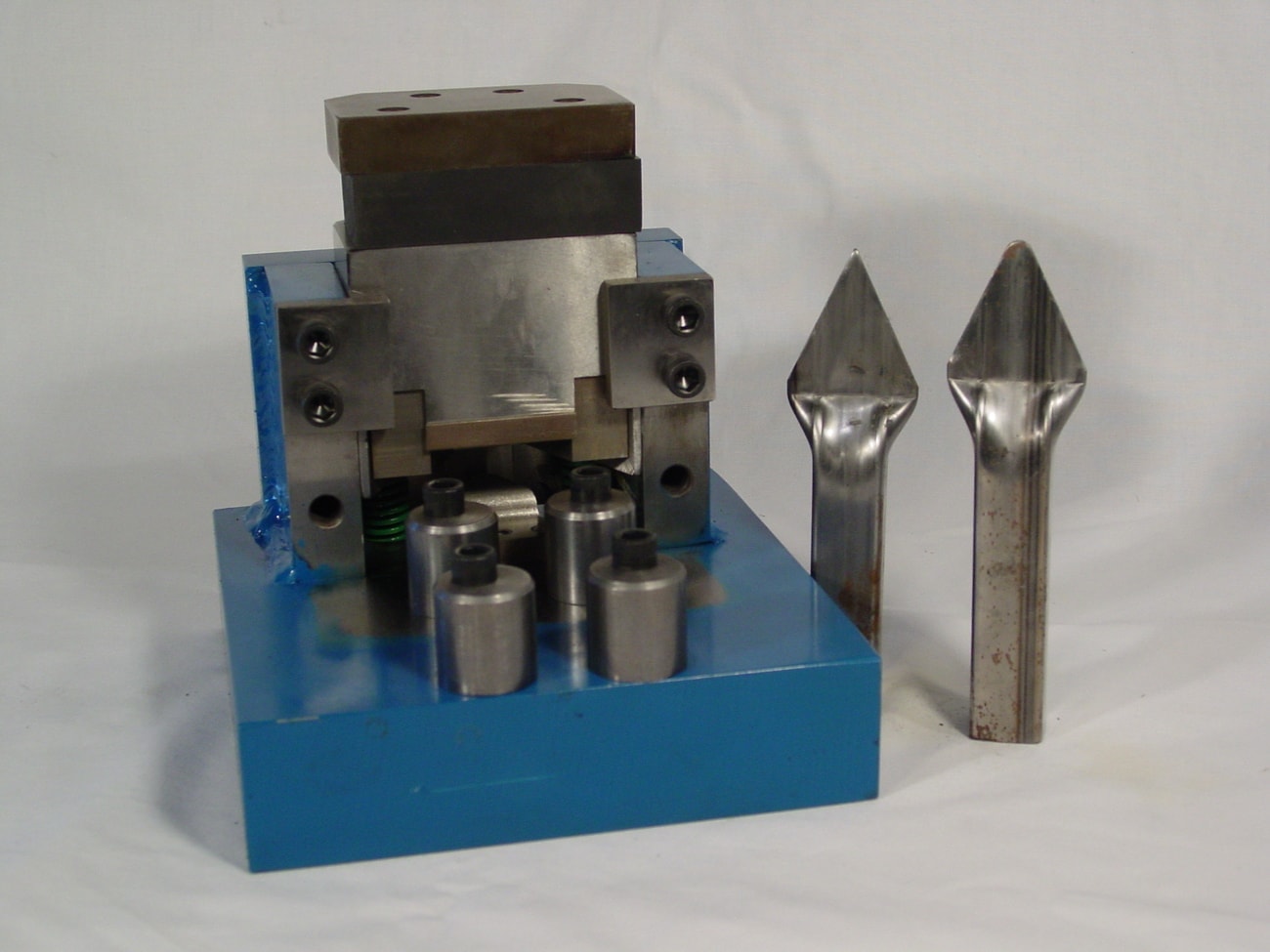

Turn square tubing into a metal picket with Vogel’s dependable, quick & easy picket tool. Our tools flattens and trims in one stroke! Adjustable guides help ensure your picket is square and straight. Our standard tools are designed for one size of square tubing. Choose from two picket styles:
Radius Point
Sharp Point
Choose what size to make your pickets with:
- 1″ [also use on 7/8″]
- 3/4″ [also use on 7/8′ or 5/8″]
- 1/2″ [also use on 5/8″]
Maximum capacity is 16 gauge for steel tubing and 14 gauge for aluminum. Whichever size you select, you can purchase low-cost changeover parts to change your tooling to a different size.

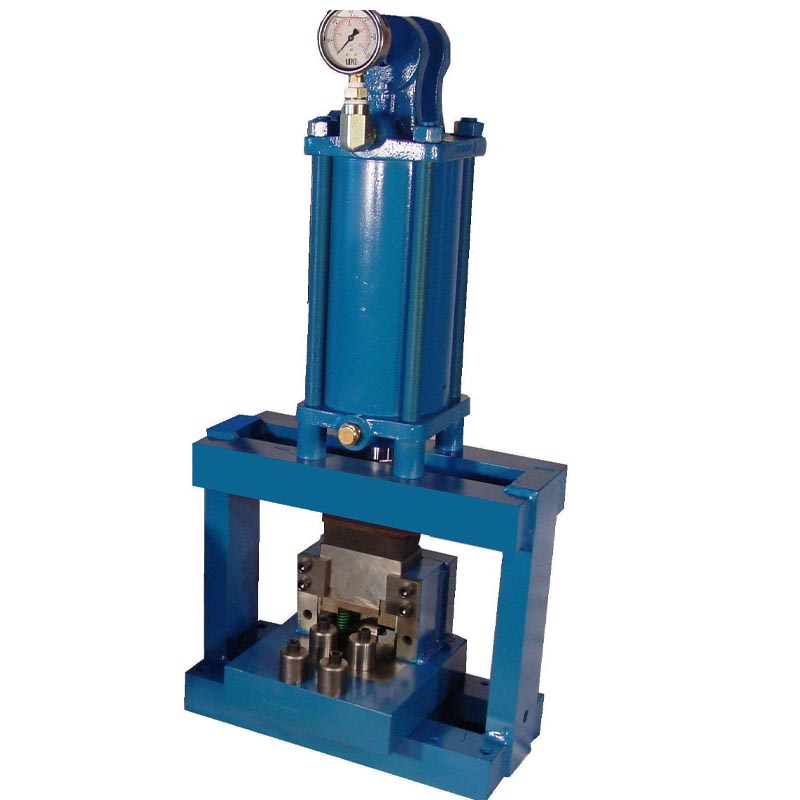

Our spring-loaded tool fits most ironworkers and can be powered by Vogel’s low cost, 120 volt CSP-25-SA Power Unit.
- 120V, no hardwiring or electrician needed
- Compact, small enough to sit on your workbench
- Foot-switch of 6′ cord for easy operation
- Our press will also accept many other Vogel tools, like pipe notching and square tube cutting.
April 2023: Due to recent increases in fuel costs, there are significant fuel surcharges being added to shipping costs. Until further notice, we are suspending our flat rate shipping for our picket forming package. Shipping charges will be based on actual costs and will typically range from $400 – $600 for shipping within the continental United States.
As a long time supporter of the American Fence Association and the National Ornamental and Miscellaneous Metals Association we are proud to to be the fencer’s choice for quality, dependable tools – made in the USA for over 80 years.
View on YouTube
Form Metal Pickets In Your Own Shop
Turn square tubing into a metal picket with Vogel’s dependable, quick & easy picket tool. Our tools flattens and trims in one stroke! Adjustable guides help ensure your picket is square and straight. Our standard tools are designed for one size of square tubing. Choose from two picket styles:
Radius Point
Sharp Point
Choose what size to make your pickets with:
- 1″ [also use on 7/8″]
- 3/4″ [also use on 7/8′ or 5/8″]
- 1/2″ [also use on 5/8″]
Maximum capacity is 16 gauge for steel tubing and 14 gauge for aluminum. Whichever size you select, you can purchase low-cost changeover parts to change your tooling to a different size.
Our spring-loaded tool fits most ironworkers and can be powered by Vogel’s low cost, 120 volt CSP-25-SA Power Unit.
- 120V, no hardwiring or electrician needed
- Compact, small enough to sit on your workbench
- Foot-switch of 6′ cord for easy operation
- Our press will also accept many other Vogel tools, like pipe notching and square tube cutting.
April 2023: Due to recent increases in fuel costs, there are significant fuel surcharges being added to shipping costs. Until further notice, we are suspending our flat rate shipping for our picket forming package. Shipping charges will be based on actual costs and will typically range from $400 – $600 for shipping within the continental United States.
As a long time supporter of the American Fence Association and the National Ornamental and Miscellaneous Metals Association we are proud to to be the fencer’s choice for quality, dependable tools – made in the USA for over 80 years.
View on YouTube
Description
Form Metal Pickets In Your Own Shop
Turn square tubing into a metal picket with Vogel’s dependable, quick & easy picket tool. Our tools flattens and trims in one stroke! Adjustable guides help ensure your picket is square and straight. Our standard tools are designed for one size of square tubing. Choose from two picket styles:
Radius Point
Sharp Point
Choose what size to make your pickets with:
- 1″ [also use on 7/8″]
- 3/4″ [also use on 7/8′ or 5/8″]
- 1/2″ [also use on 5/8″]
Maximum capacity is 16 gauge for steel tubing and 14 gauge for aluminum. Whichever size you select, you can purchase low-cost changeover parts to change your tooling to a different size.
Our spring-loaded tool fits most ironworkers and can be powered by Vogel’s low cost, 120 volt CSP-25-SA Power Unit.
- 120V, no hardwiring or electrician needed
- Compact, small enough to sit on your workbench
- Foot-switch of 6′ cord for easy operation
- Our press will also accept many other Vogel tools, like pipe notching and square tube cutting.
April 2023: Due to recent increases in fuel costs, there are significant fuel surcharges being added to shipping costs. Until further notice, we are suspending our flat rate shipping for our picket forming package. Shipping charges will be based on actual costs and will typically range from $400 – $600 for shipping within the continental United States.
As a long time supporter of the American Fence Association and the National Ornamental and Miscellaneous Metals Association we are proud to to be the fencer’s choice for quality, dependable tools – made in the USA for over 80 years.
View on YouTube
What sizes of tubing can I form into pickets?
Our tooling will accept 1/2″ square minimum, 1″ square maximum. Thickness of 14 gauge [if aluminum] 16 gauge [if steel] to 18 gauge [either material]. The tool is set up for one size of square tubing and requires a changeover punch and die when changing tube sizes. Some sizes can be run with the same tooling, see chart below.
What do I need to make my own pickets?
You’ll need square tubing, a way to cut the tubing to your desired picket length (or purchase pre-cut), our picket forming tool and a press to power the tool.
What sizes of tubing can I form into pickets?
Our tooling will accept 1/2″ square minimum, 1″ square maximum. 14 gauge to 18 gauge. The tool is set up for one size of square tubing and requires a changeover punch and die when changing tube sizes. Some sizes can be run with the same tooling, see chart below.
Tube Size Gauge Use tooling for:
1/2″ square 14 ~ 18 1/2″
5/8″ square 14 ~ 18 3/4″
3/4″ square 14 ~ 18 3/4″
7/8″ square 14 ~ 18 1″
1″ square 14 ~ 18 1″
You show different shapes on your site, what should I get?
The sharp (PC75) and radius (PC75R) are our standard designs. You can buy either design and convert them later to the other style. We caution that many local building codes may restrict or ban the use of the sharp point design, for safety reasons. The radius tip is by far our most popular design. The other two designs with notched sides are custom-built. We may be able to other additional custom designs, so please fax or email us your ideas!
How many strokes does it take to smash, trim and form the picket?
Our tooling only requires one press stroke to create the picket from you cut to length square tube. Note that a small bit of scrap is created during the trimming of the tip shape, so you will actually need to cut your tubes slightly longer to compensate.
I don’t have a press to run your tooling in, can I operate in my Vogel Hand Press?

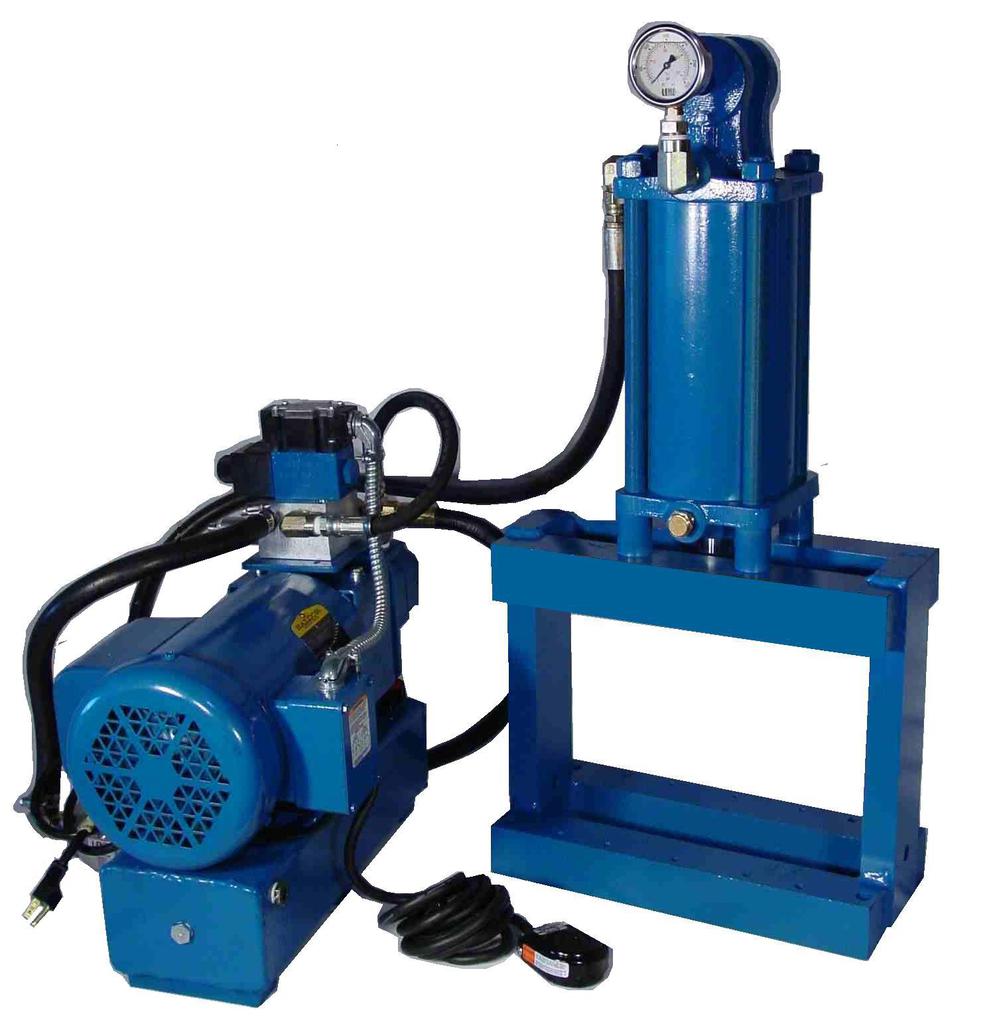

The tonnage required to form pickets exceeds what our hand press can generate. You will need our CSP-25-SA, a simple hydraulic power unit. This press is 110V, small enough to fit on a workbench, and has a foot switch to cycle the press each time you are ready to form a picket. With a $80.00 mounting adaptor, you can also use the power unit to run all the notching tooling that you currently operate with your hand press.
What do I do to form the horizontal rails to make a complete panel?
We offer three tools that can be used to pierce the rails. We offer two channel pierce tools (with different maximum capacities) and one tube piercing tool.
